Use Case: Ticketing system for Červená Hviezda Swimming Pool

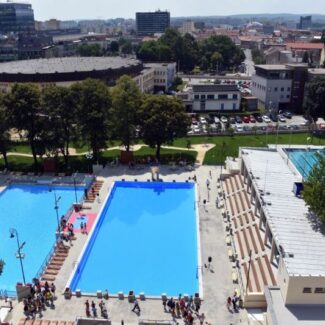

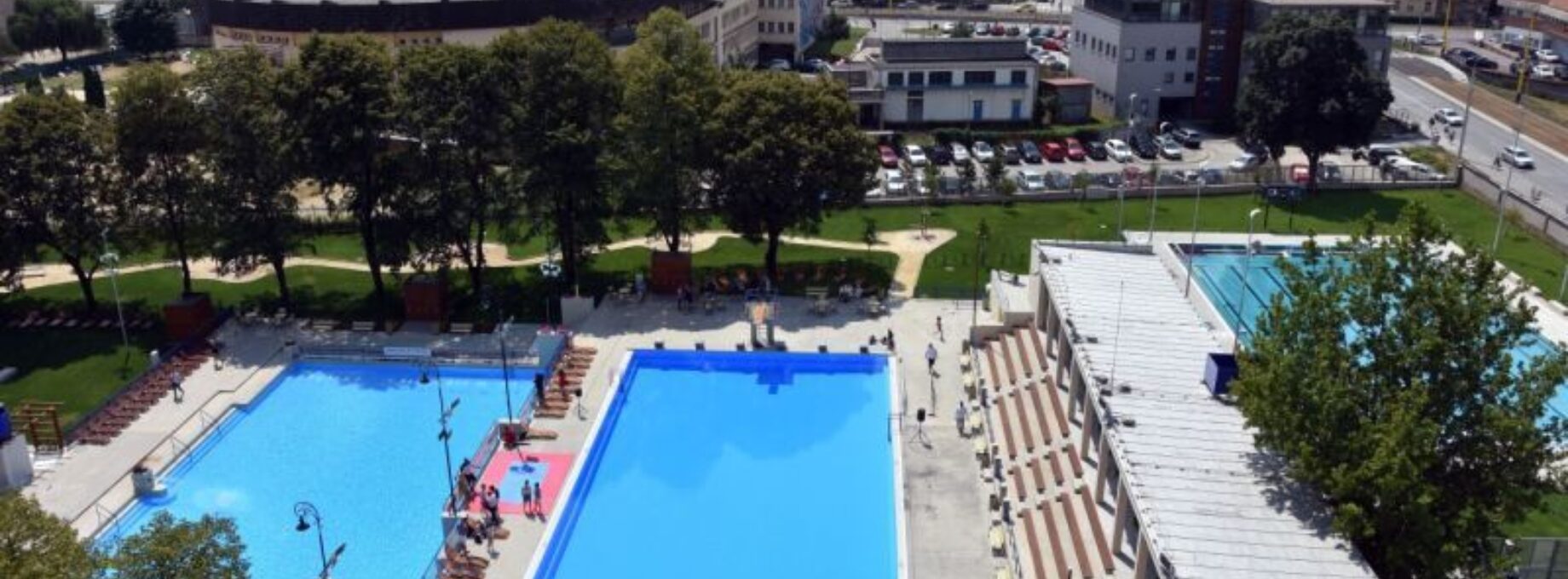

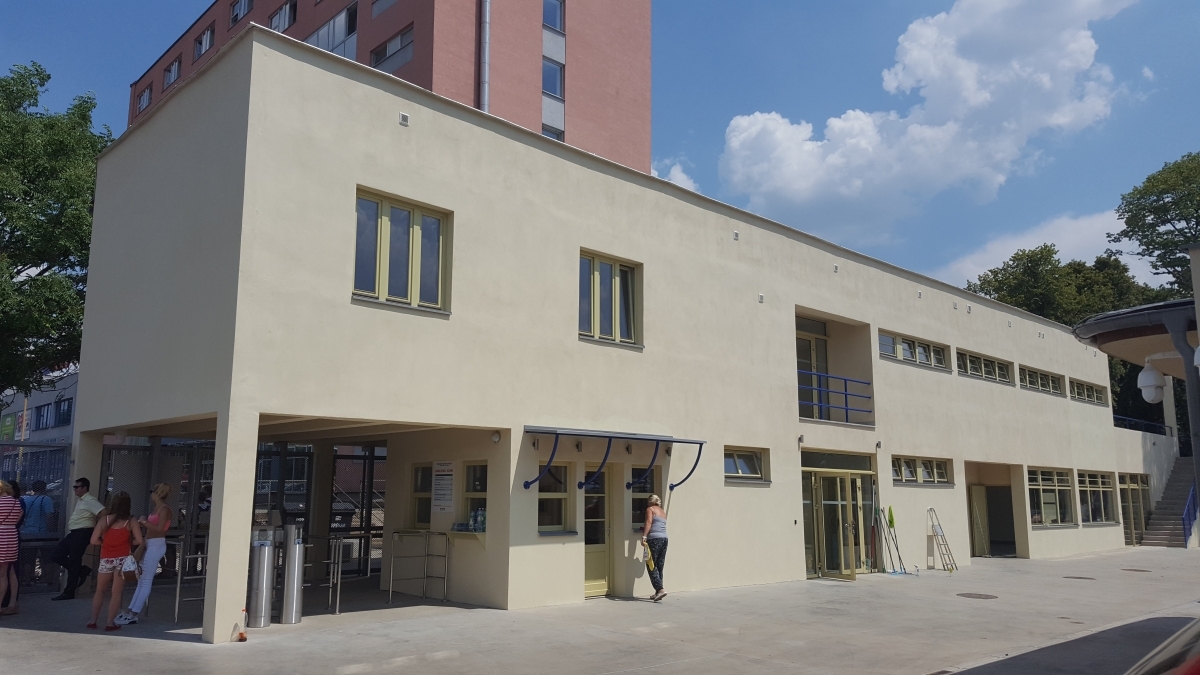

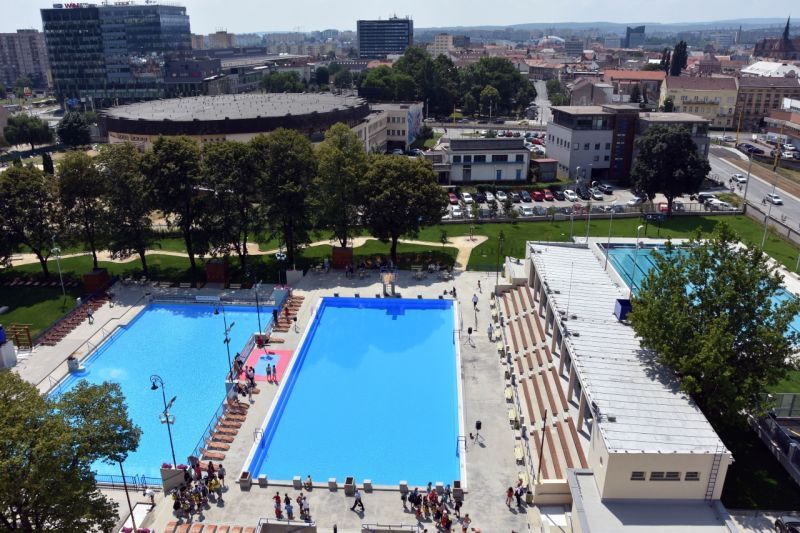

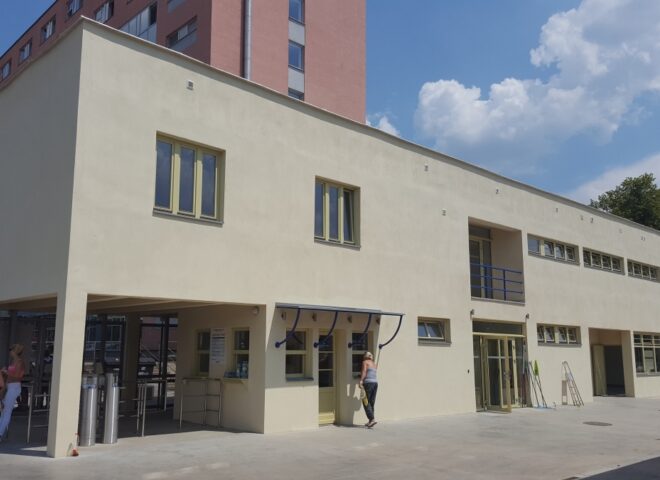

Červená Hviezda Swimming Pool
Košice, Slovakia
In 2016, work began on a project to install a ticketing system for the Červená hviezda swimming pool in Košice, Slovakia.
Goal
Implement a complete ticketing system with access control to the swimming pools and lockers, ticket sales enabling entry to the premises, and allowing customers to purchase services cashlessly.
Solution
Installation of a ticket system, which ensures contactless entry to the premises for customers and a convenient sales process.
Procedure from the customer’s point of view
- The customer enters and purchases their desired type of ticket (multi-entry, multi-zone, season pass, etc.)
- The customer receives a chip bracelet that allows entry to the relevant part of the swimming pool through a vertical double turnstile including keyless entry to the locker (in case a customer forgets their locker number, they can scan the bracelet against the infoterminal and immediately find out their number).
- The customer uses the services of the swimming pool.
- When leaving, the customer goes to the exit turnstile with an acceptor - this device takes the customer's bracelet and opens the exit turnstile. If the customer has locked the cabinet with their chip bracelet, the bracelet is not taken and the turnstile will not let the customer exit.
Advantages
- Comfortable process for customers - Convenient purchase of optional types of entry using chip bracelets that allow free movement around the swimming pool
- One medium - A single waterproof chip bracelet usable for entrances, opening the lockers, and paying for services
- Security - Only paying customers can enter the premises
- Overviews and statistics - Clear statistics of all the passages, transactions, sales, device monitoring, ticket configuration and administration and any additional sales.
Supplied components
- Triton's cash desk software for ticket sales
- Cashless payments in the wet footprint (restaurant, wine bar, bar, buffet, massages, sauna, cash registers and SW from Micros)
Equipment breakdown - ticketing control system in the assembly:

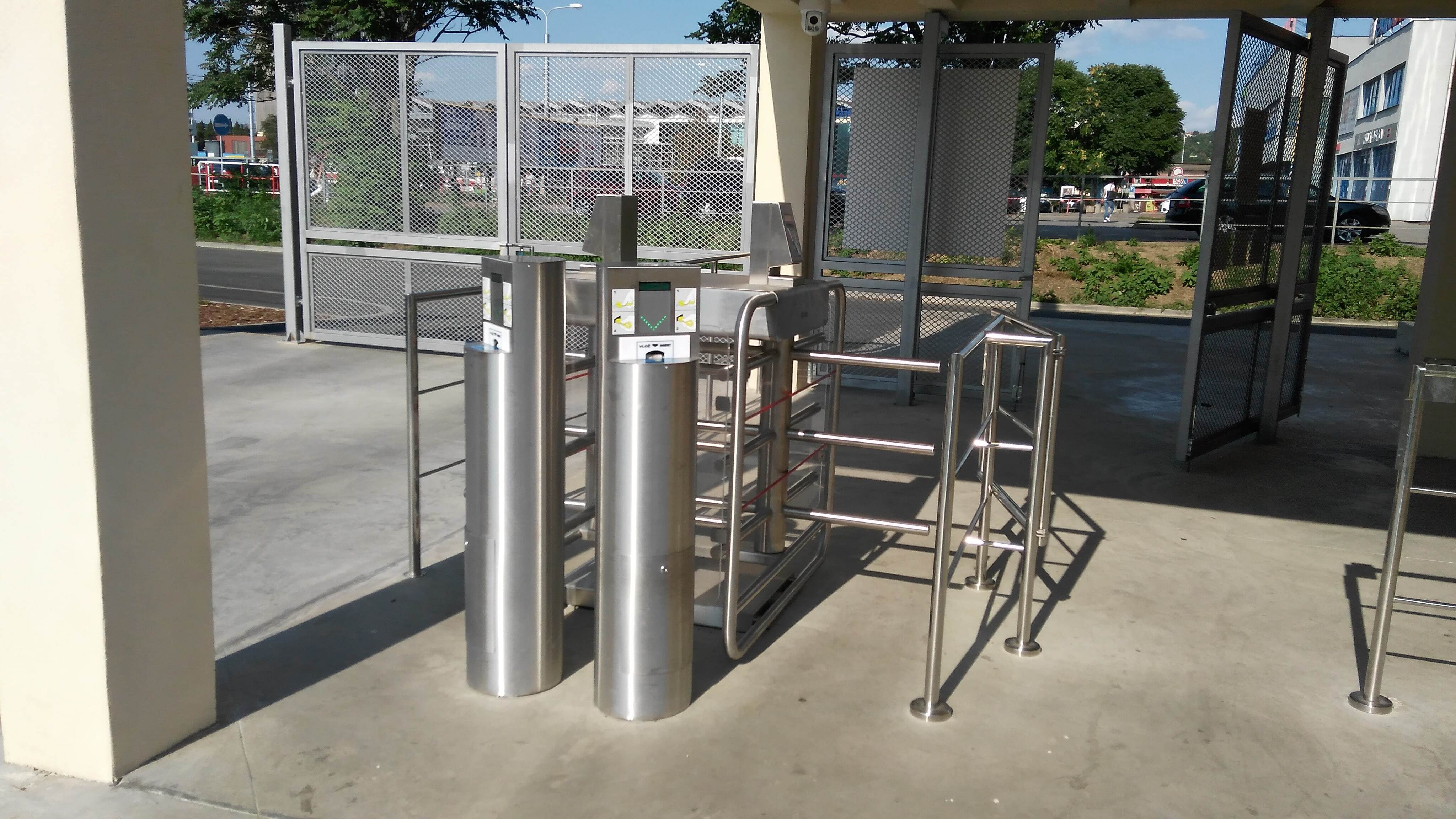

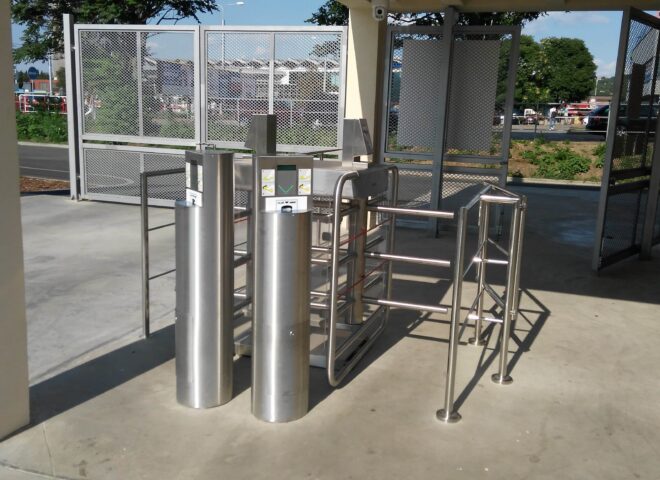

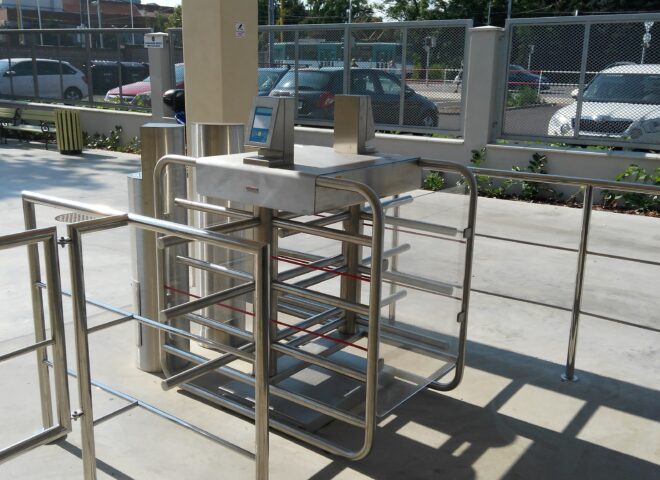

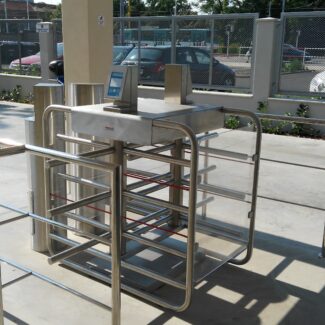

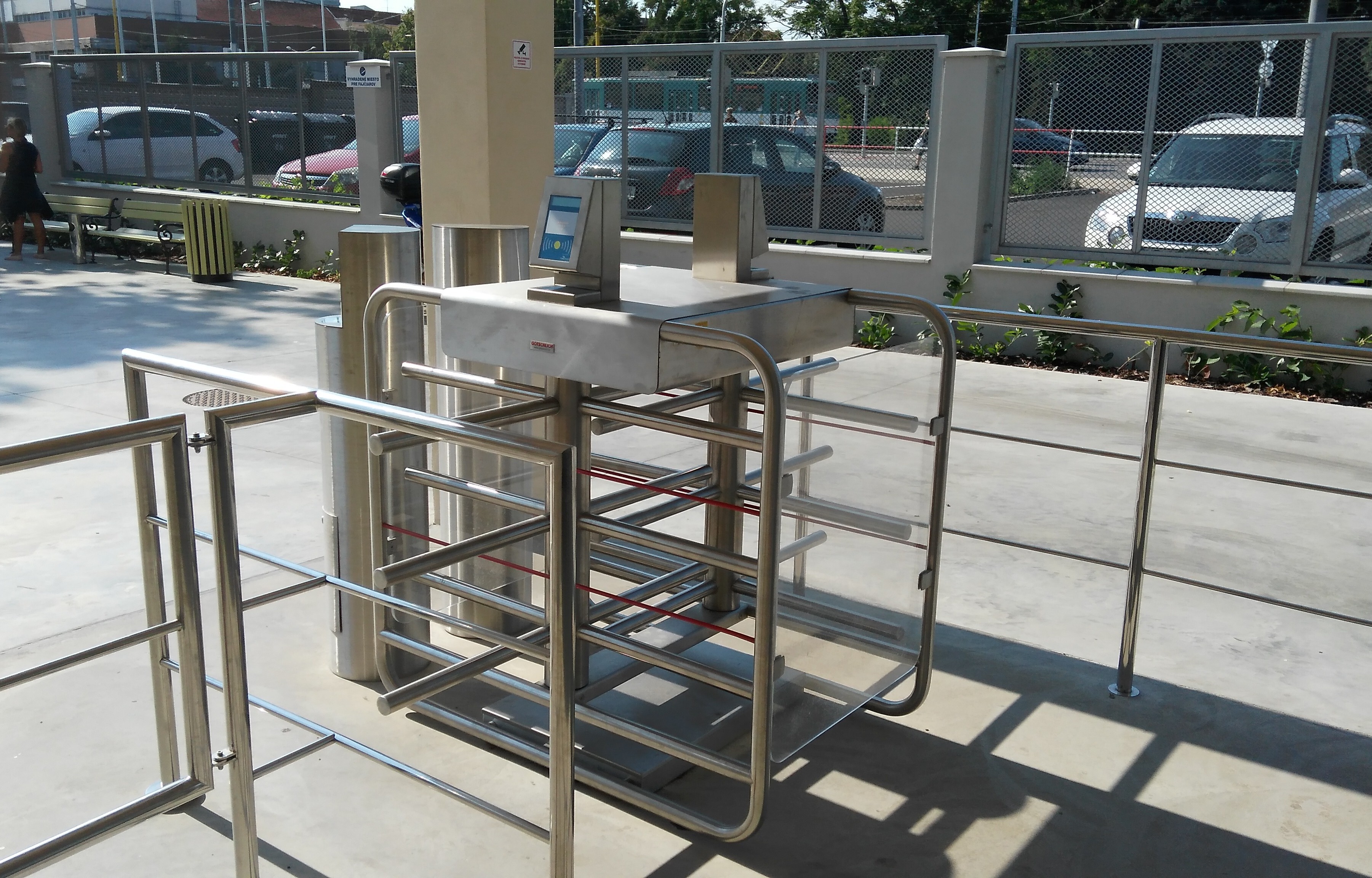

- 1x vertical double turnstile Vario 1100D
- stainless steel barrier with electromechanical gate
- 2x terminal with reader of cards, chip bracelets, tickets with QR code
- 1x info terminal

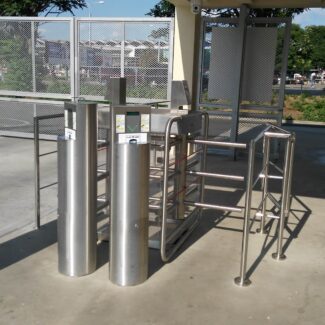

- 2x devourer / remover of bracelets

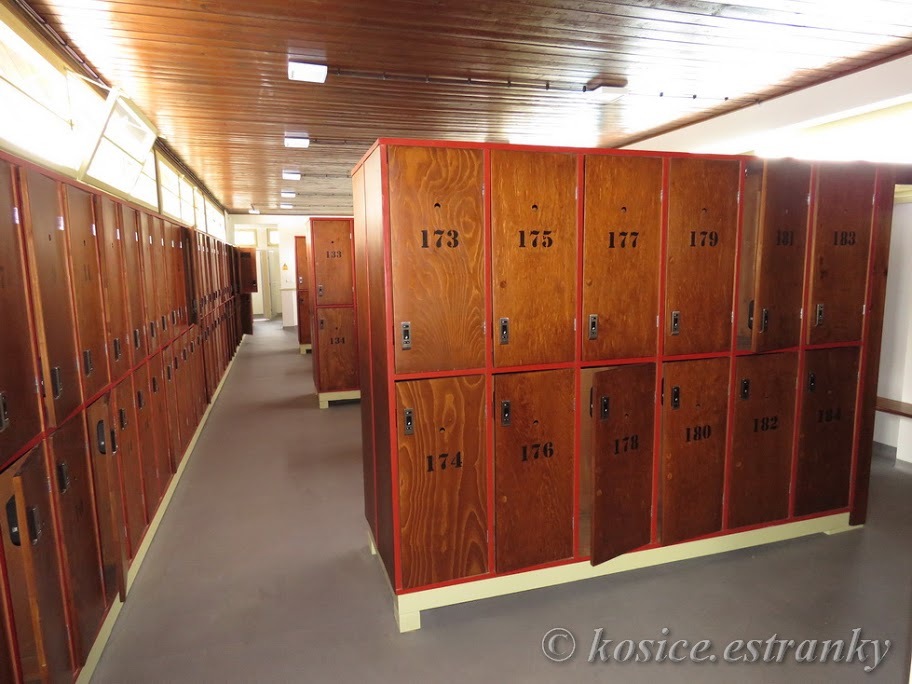

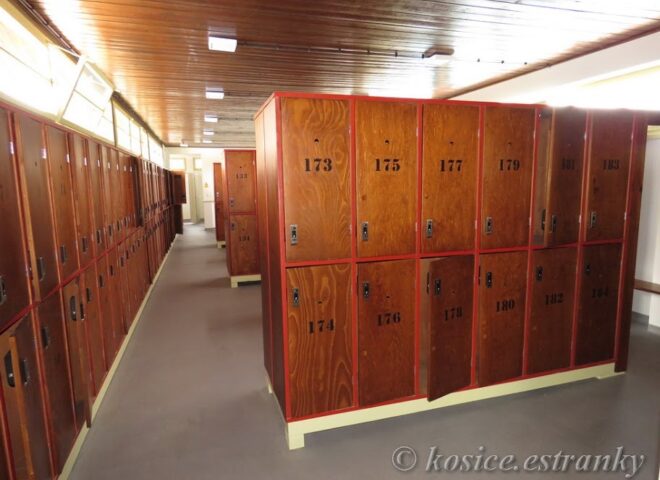

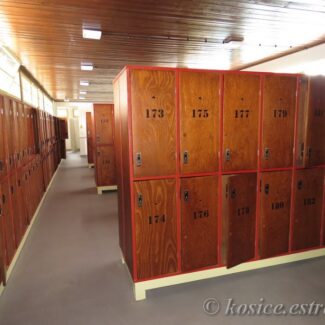

- 620x RFID locks for lockers
- chip bracelets
- 1x door access system
- 2x cash register
- PC server
- SW Arena Wellness access ticket
